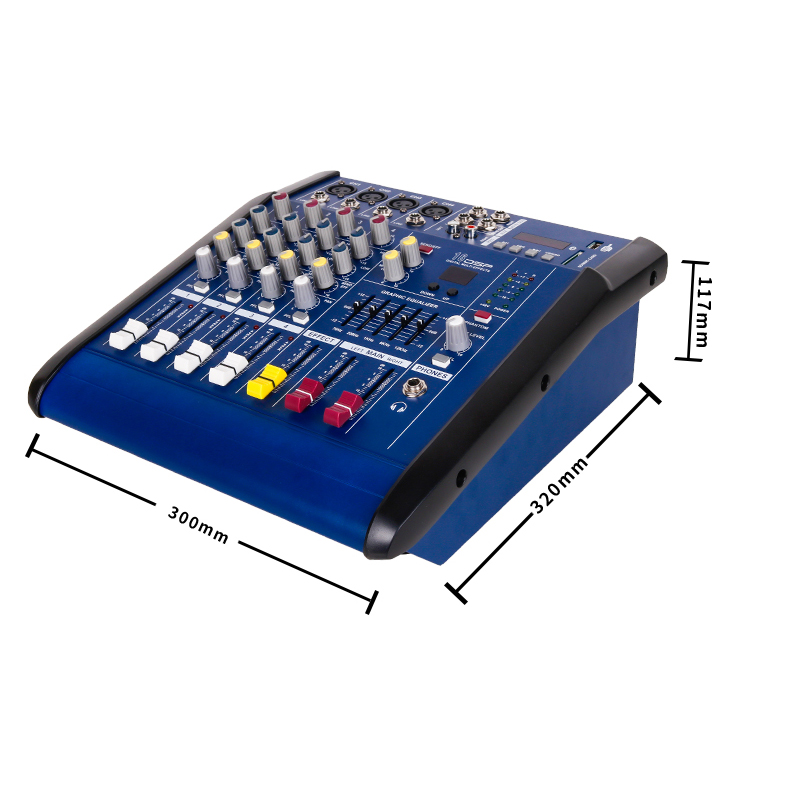

PMX-402D Professional 4 Channel Digital Audio Mixer with Amplifier Built-in 48v Phantom Power BT LED Display USB Sound Mixer
Functional characteristics
1.8 Channel Signal Input
2.8 Group main channel output (XLR balance and 6.35m),
3. Low noise, high precision microphone preamplifier, clear and clean sound quality
4. Balanced microphone XLR input and balanced line TRS input, 3 channel balance
5. 48V phantom power supply provides polarization voltage for input ports and facilitates connection of capacitive microphones
6. Earphone monitoring interface (earphone: TRS, tip L, ring R, 30-600 OHM earphone recommended)
7. Quasi-logarithmic dual 10-bit LED level display
8. MP3 player module (LCD HD display, USB interface, and display function)
9. External switching powBuilt-in power amplifier: 300w
Input sensitivity: -60dbm~-40dbm
Microphone input balance: +16dbu
Line input level: +3dBm
Input level MAX:19dbm
SNR: 80 db
Frequency response: 20Hz-20khz±3db
Gain control: mono -26db,0db
Headphones: 7V/220 ou
Balance adjustment: low, high
Power supply: AC220-240V/50-60hz
er supply (AC100-240V AC) flexible use, low power consumption characteristics
10. 16 kinds of digital effects, you can use the button to select
相关产品
自带功放功率： 300w
输入灵敏度： -60dbm~-40dbm
话筒输入平衡：+16dbu
线路输入电平：+3dBm
输入电平MAX:19dbm
信噪比： 80 db
频率响应：20Hz-20khz±3db
增益控制：单声道-26db,0db
耳机：7V/220欧
均衡调节：低，高
电源：AC220-240V/50-60hz
Mono microphone input
16 kinds of LCD digital display, digital effects
48V phantom power for professional recording condenser microphone use
five-band equalizer
Two channels (L / R) audio output
One way to send the output, one return input
A set of stereo mix output
Each has a monitor switch
One way high-fidelity high-power headphone output (1W)
Headphone monitoring function
USB playback
